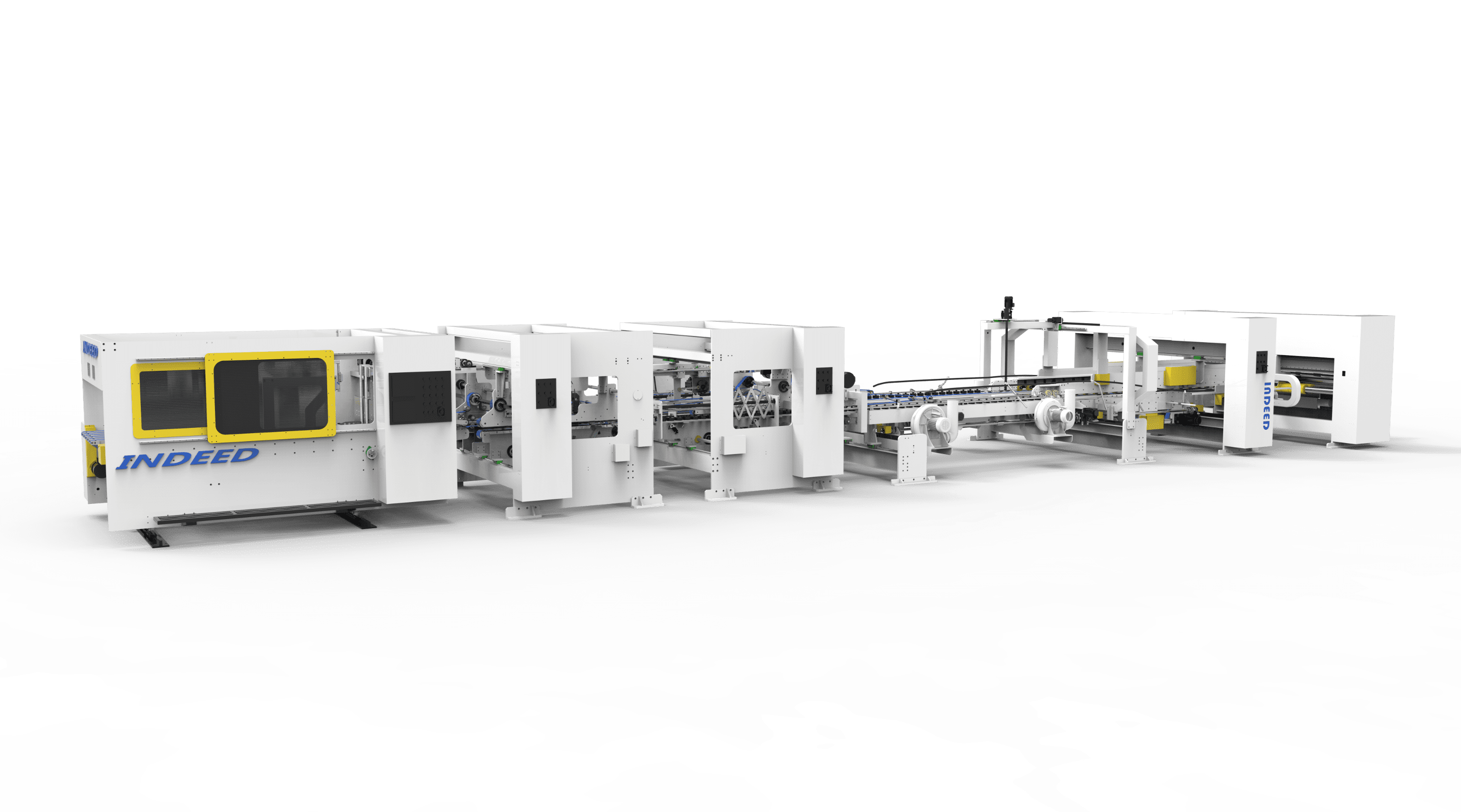

2-in-1 universal offline machine combining gluing and stitching, satisfying two production needs with one equipment for lower investment and higher versatility. Intelligent control ensures stable high-speed operation, automatic aligning, precise gluing/stitching, and neat output. Suitable for E-AB corrugated boards, it is a cost-effective choice for improving quality, saving labor, and increasing efficiency.
Parameters
| Model | UG-1224AD | UG-1228AD | UG-1628AD | UG-1632AD | UG-2540AD | |
| Max Gluer Speed (M/M) | 200 | |||||
| Max Stitch Speed (Nails/M) | 1200 | |||||
| L2 | Max (mm) | 800 | 850 | 850 | 950 | 1200 |
| Min (mm) | 230 (S 250) | 230 (S 250) | 260 (S 280) | 300 (S 320) | ||
| W1 | Max (mm) | 700 | 750 | 750 | 800 | 900 |
| Min (mm) | 130 (S 150) | 130 (S 150) | 160 (S 180) | 200 (S 180) | ||
| L2+W1 | Max (mm) | 1400 | 1400 | 1400 | 1600 | 2000 |
| Min (mm) | 360 (S 400) | 360 (S 400) | 420 (S 460) | 500 (S 540) | ||
| D2 | Max (mm) | 1200 | 1200 | 1600 | 2500 | |
| Min (mm) | 350 (S 400) | 400 (S 450) | 500 (S 550) | |||
| Glue Lap Width | 35mm-40mm | |||||
| Box Height | ≥70mm | |||||
| Suitable For Sheet | E-AB | |||||
Parameters
Parameters

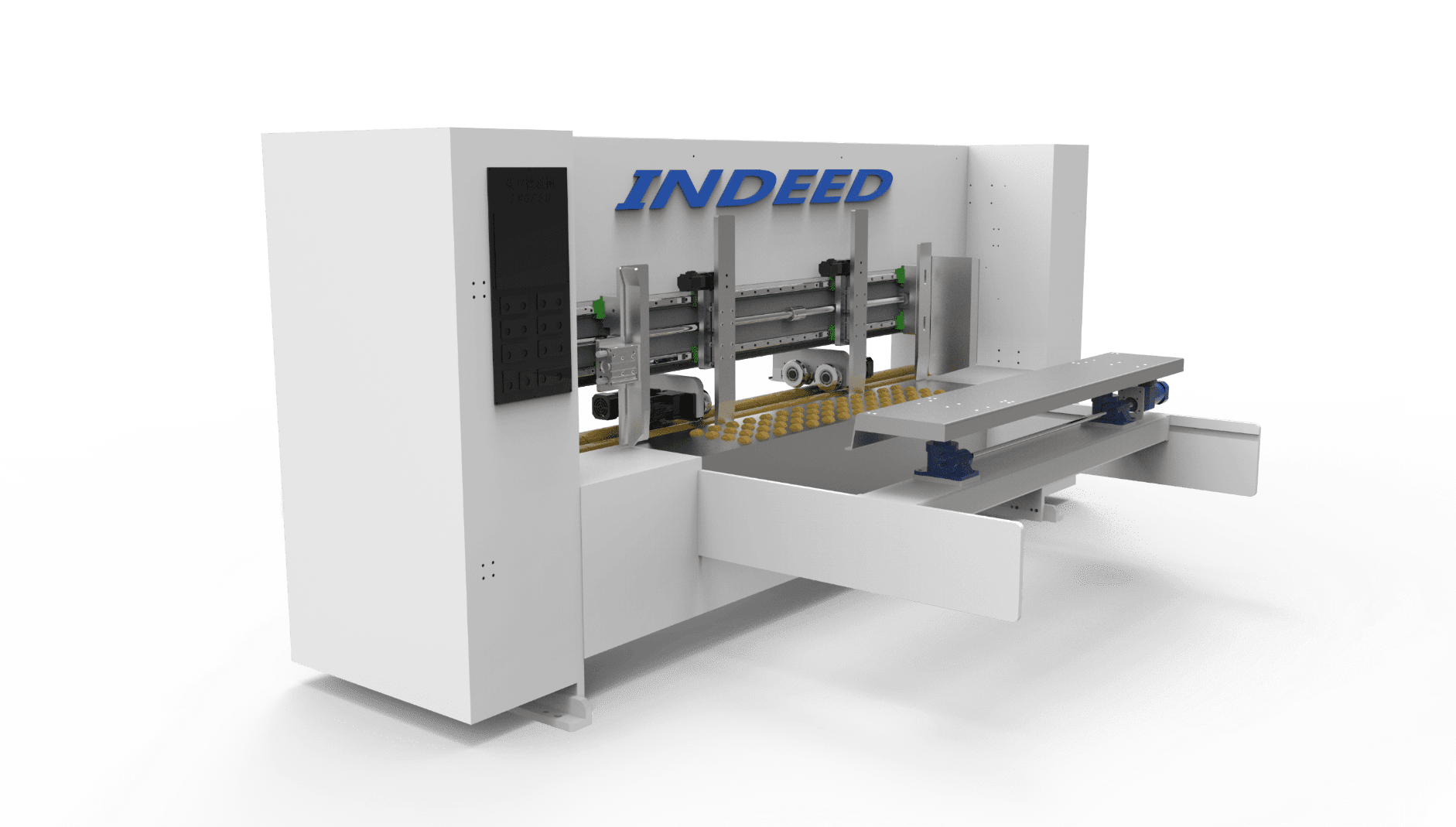

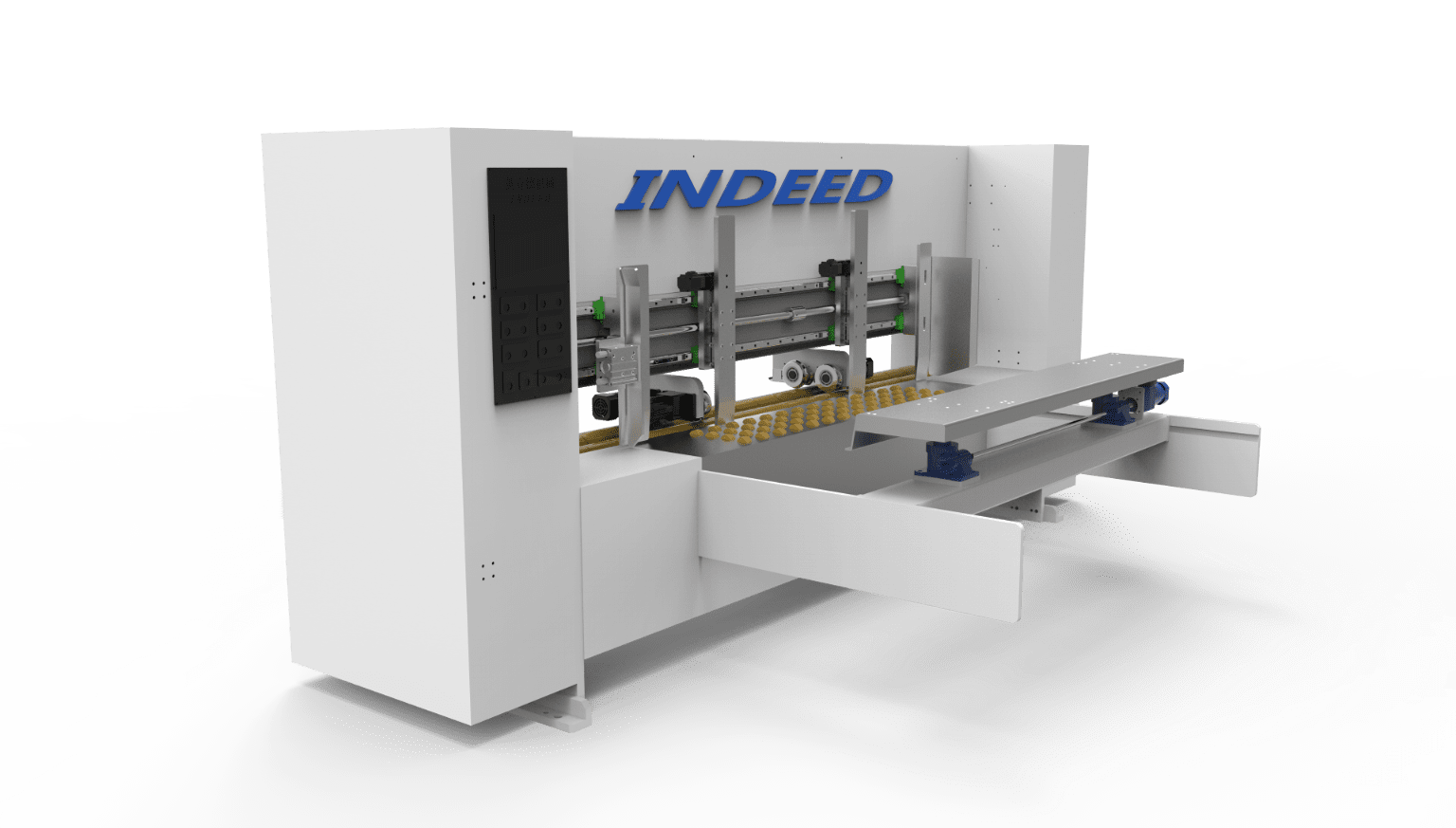

| SERVO CONTROL NON-CRUSH FEEDER |
| ROLLING GLUE UNIT (OPTION VALCO OR HHS) |

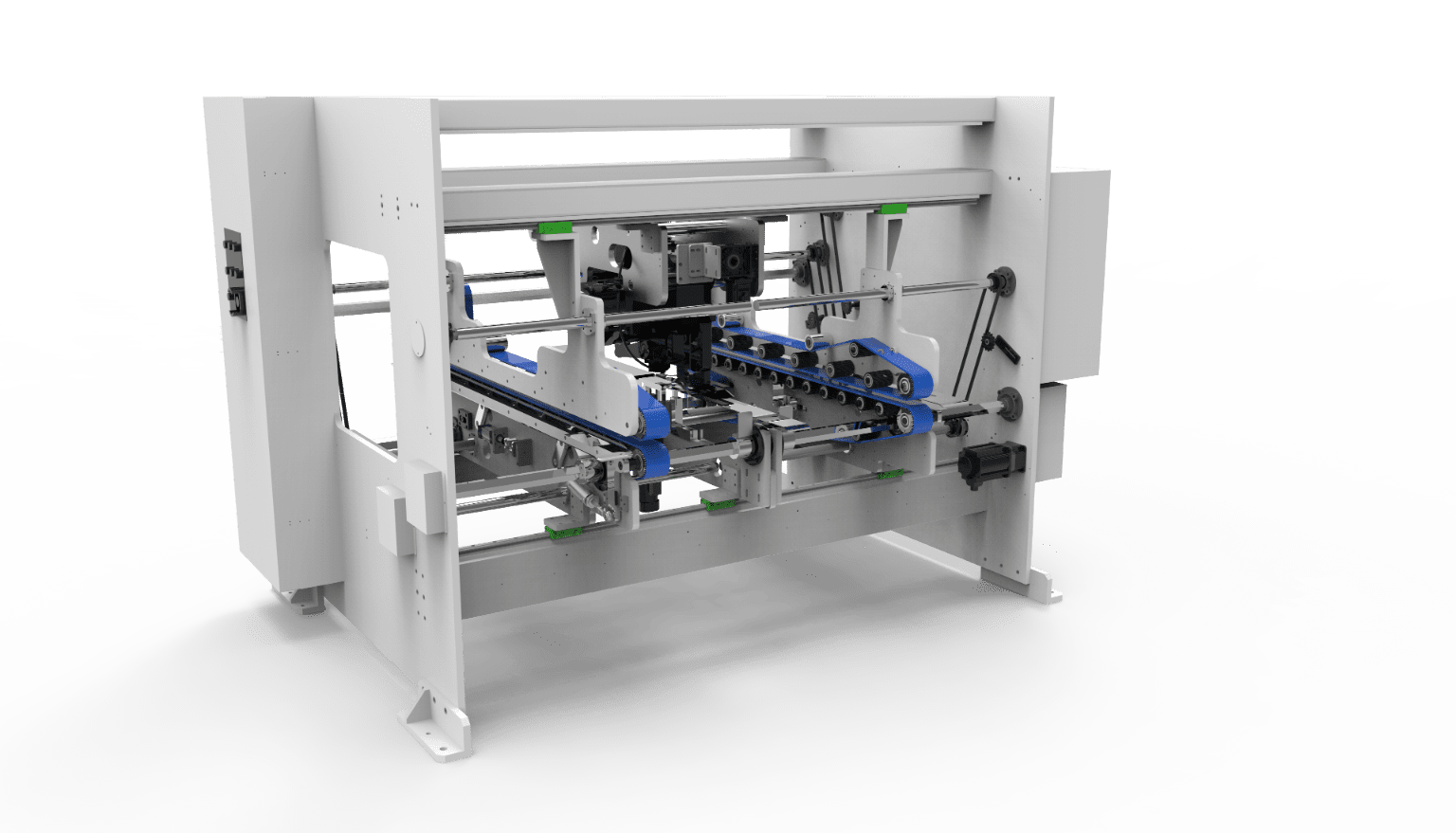

| CREASING AND FORMING UNIT |

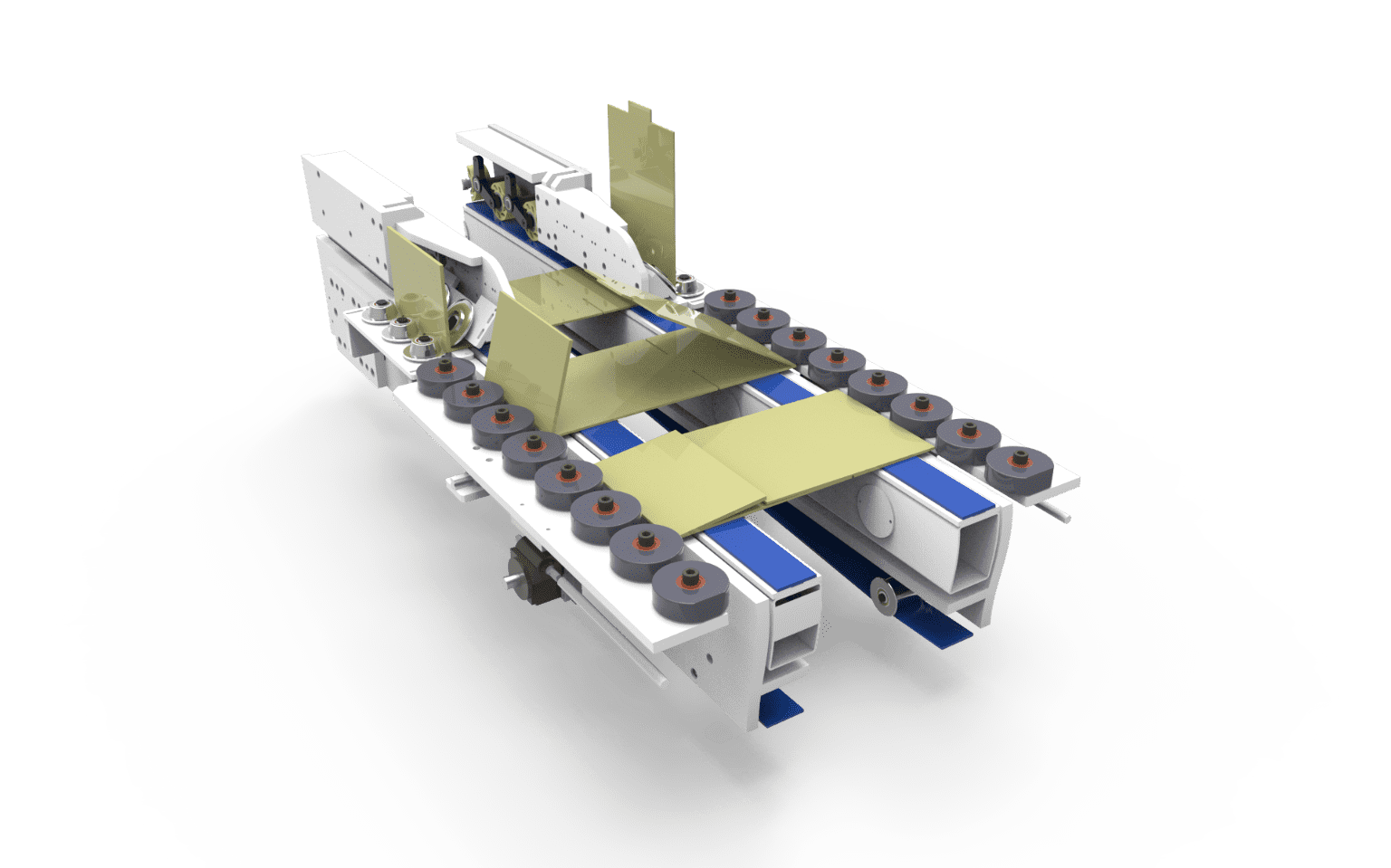

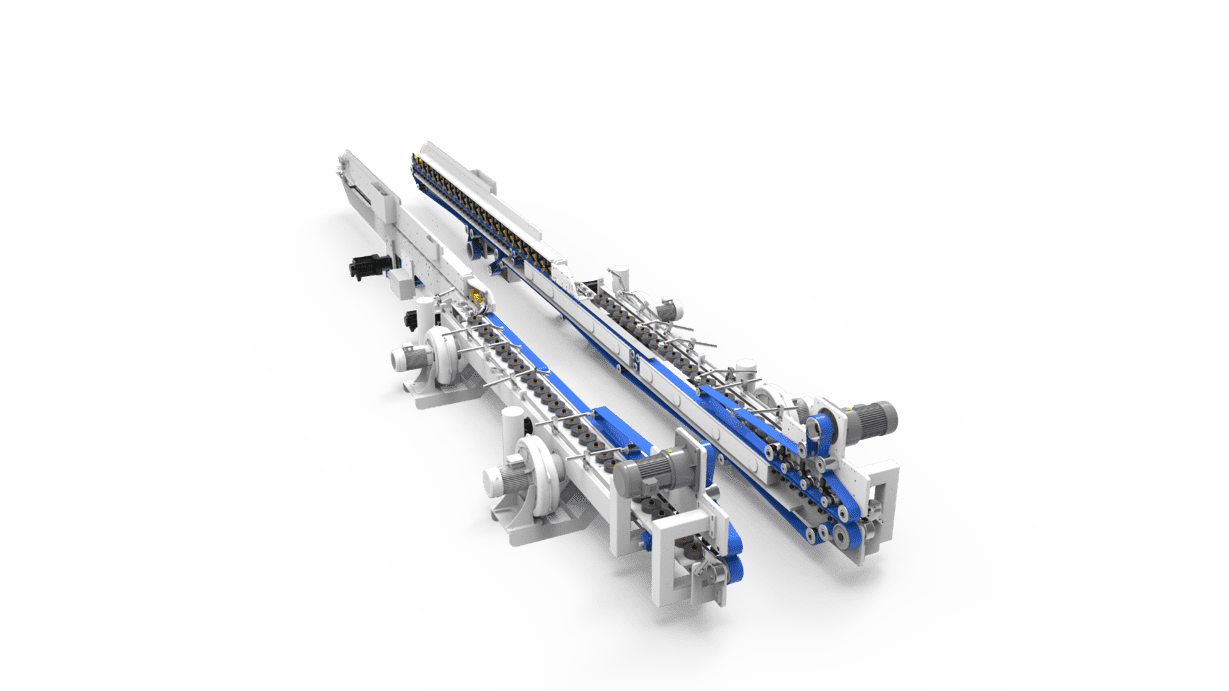

| FOLDING UNIT |

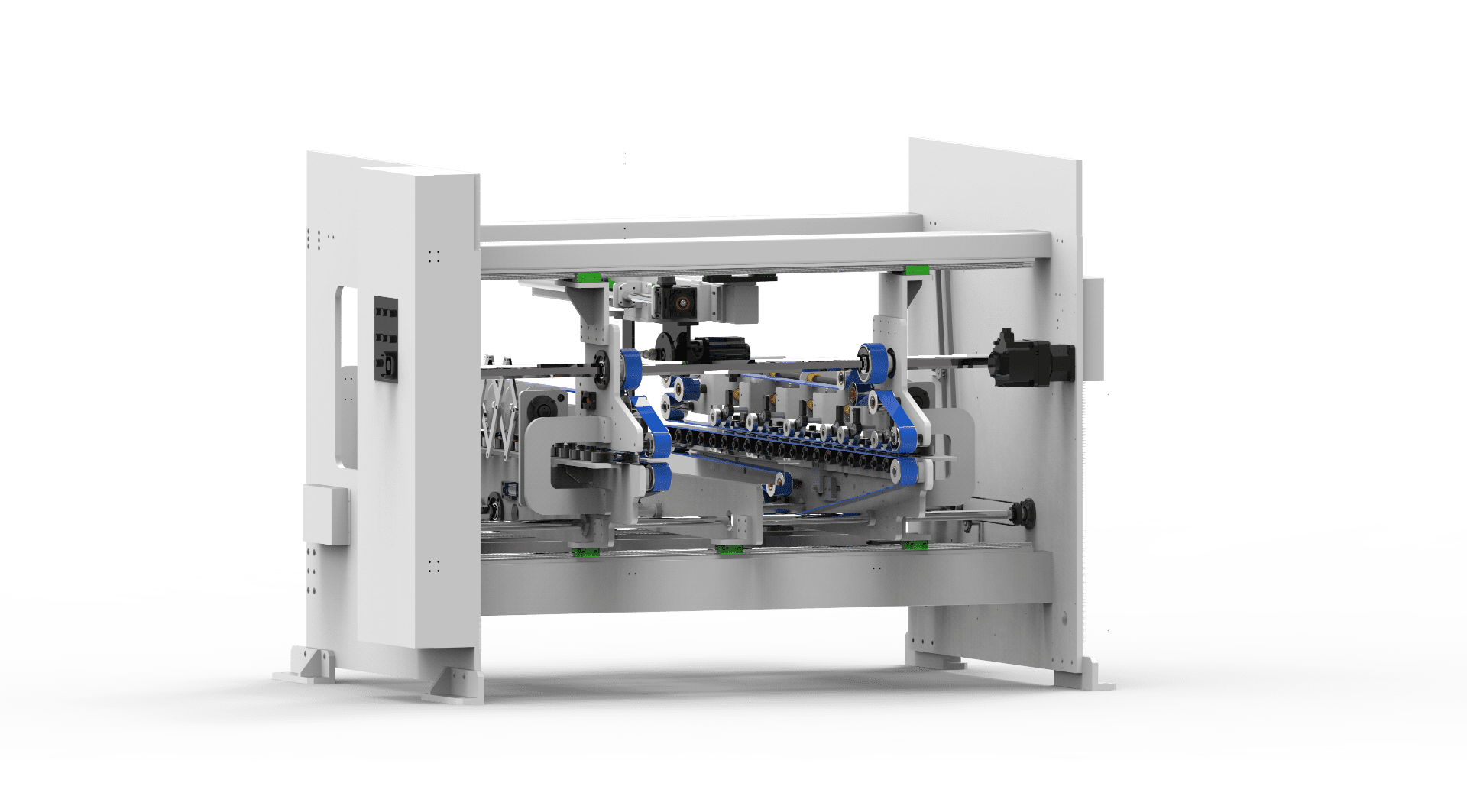

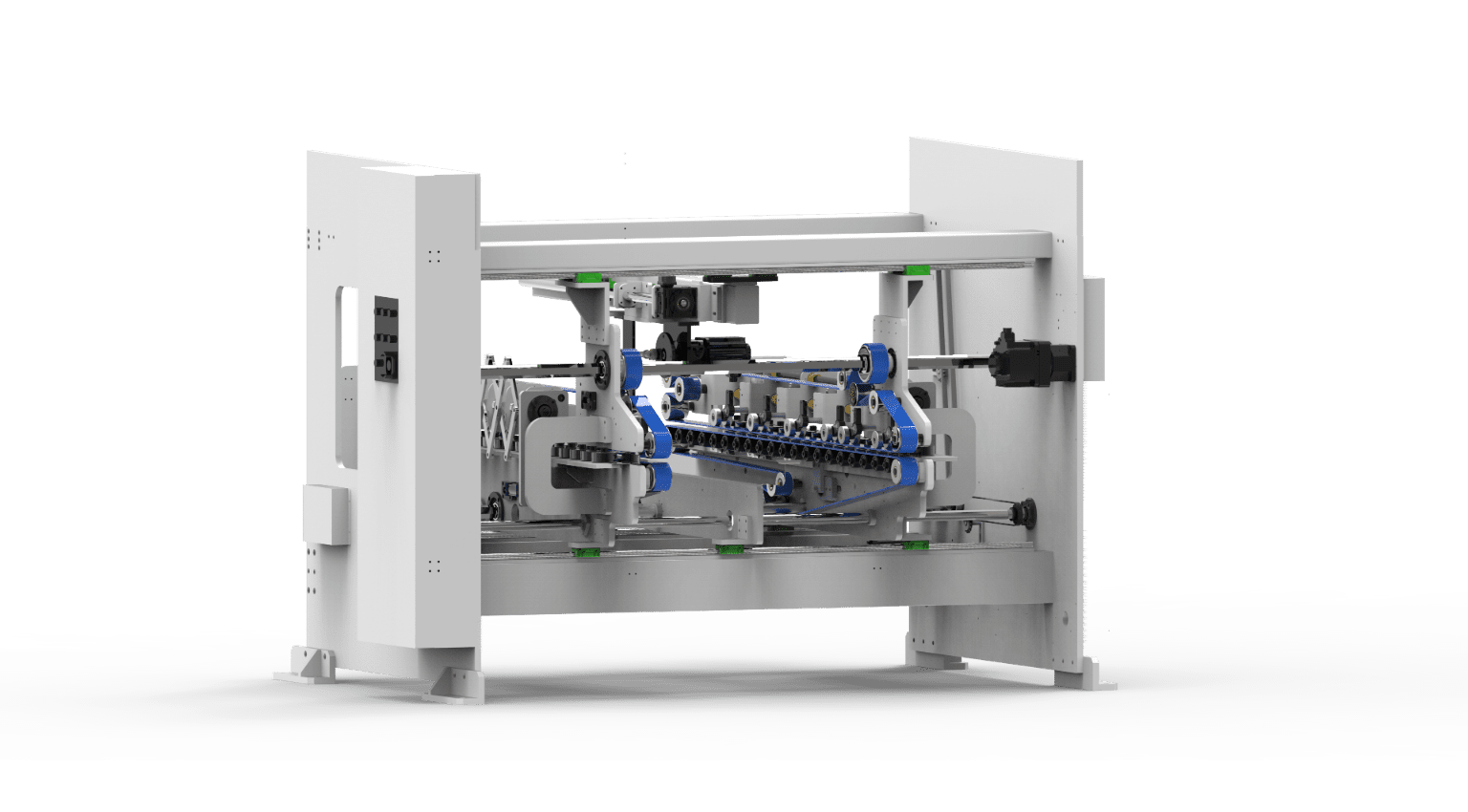

| SLAPPING UNIT |

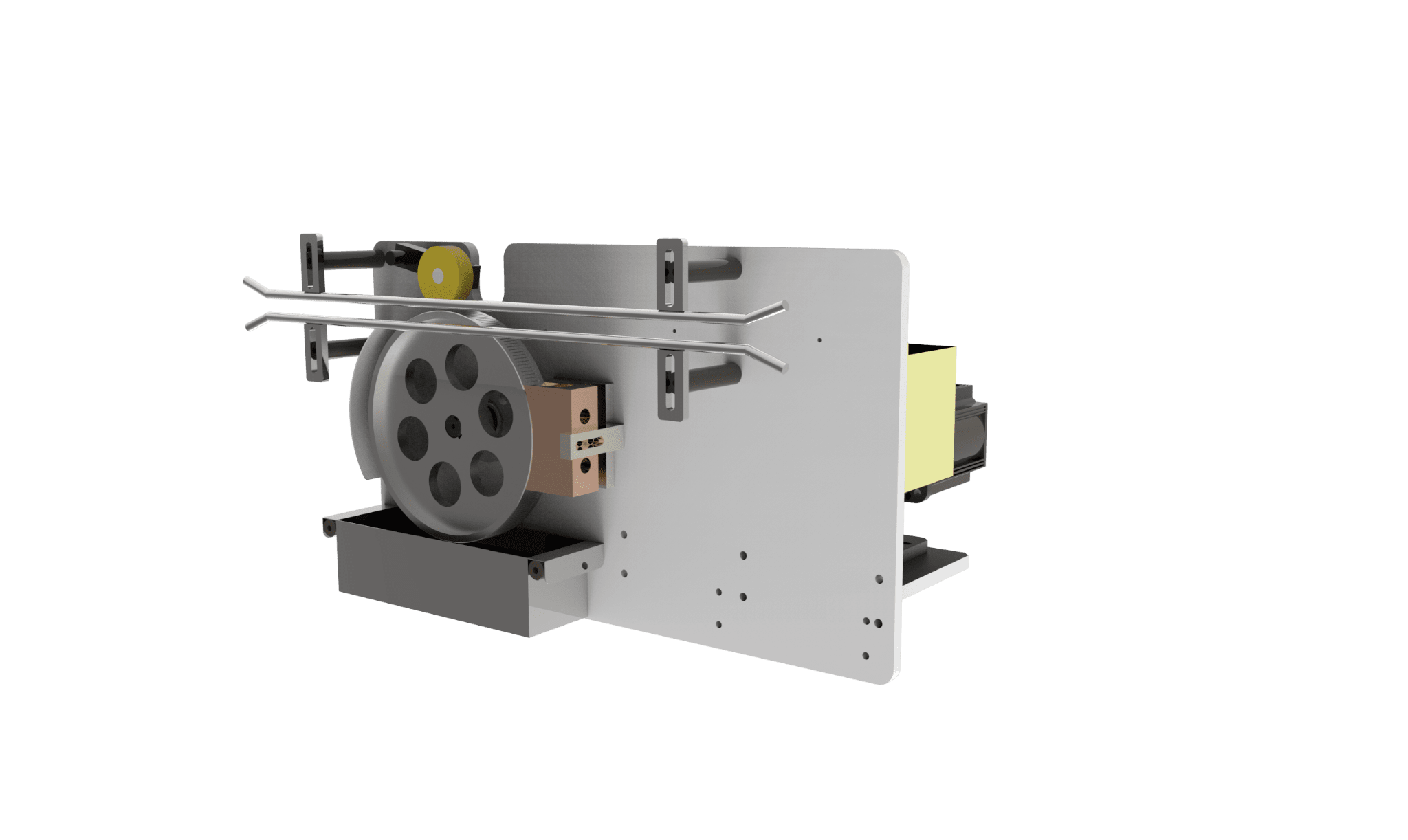

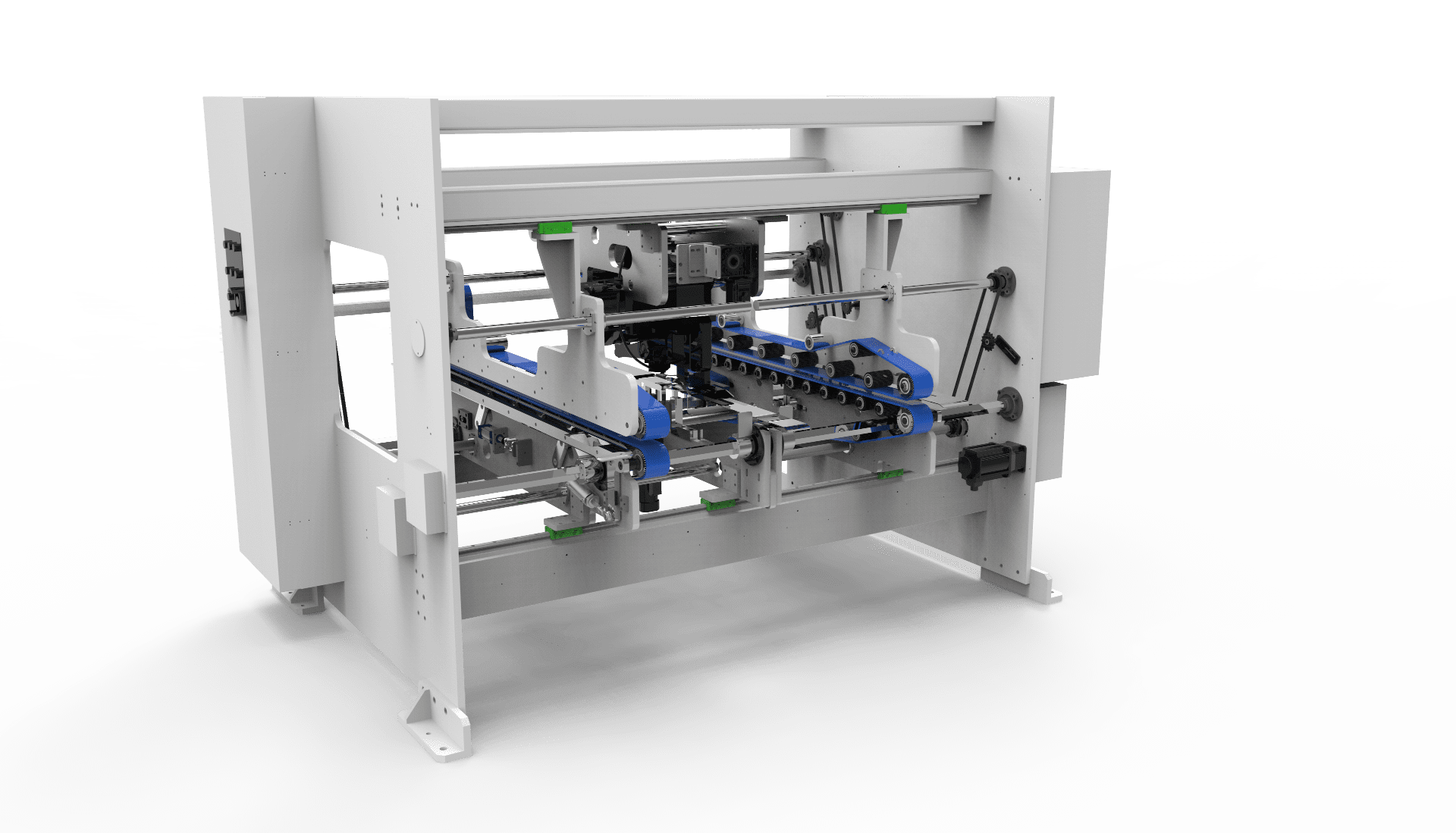

| STITCHING UNIT |

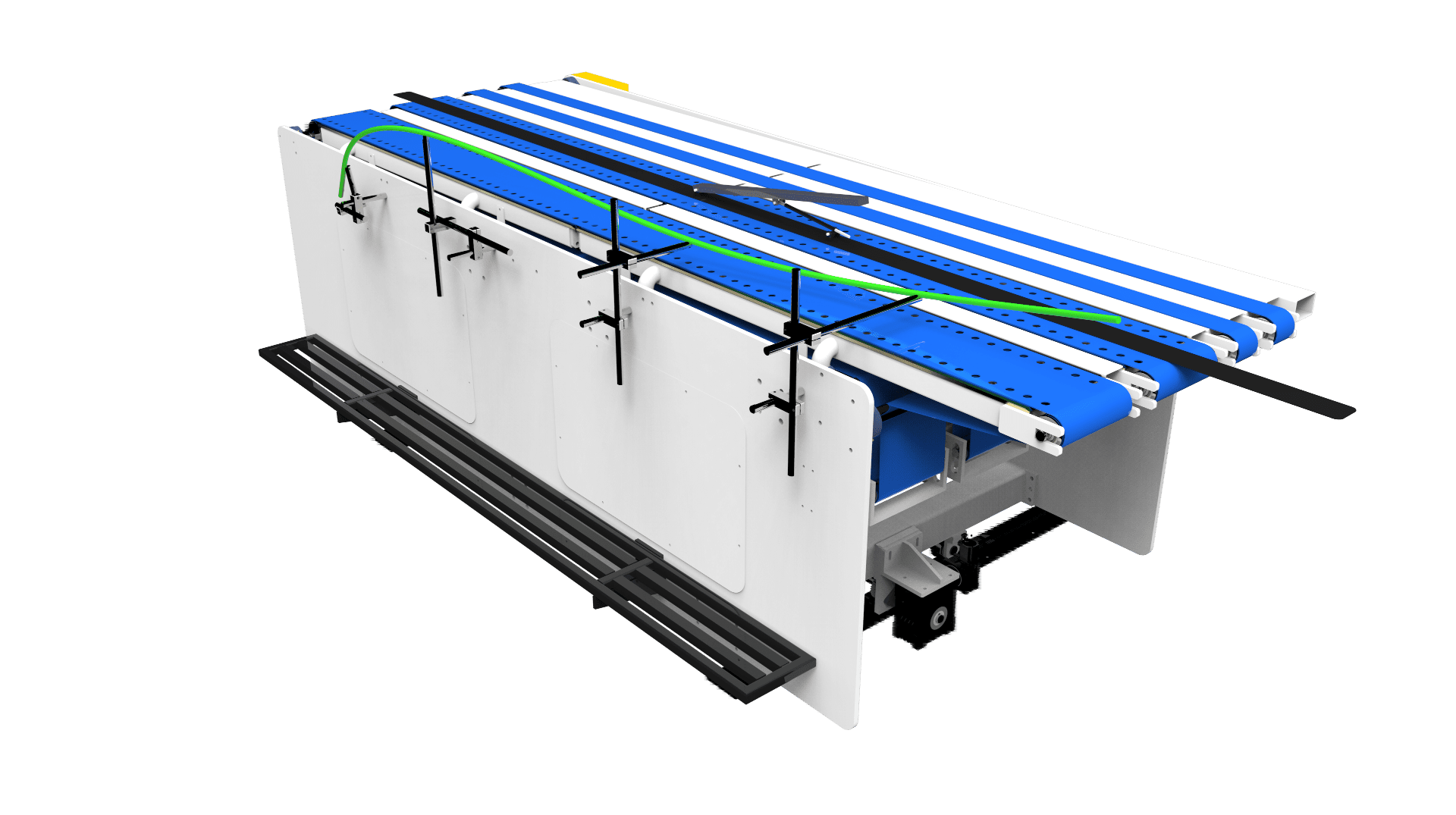

| AUTOMATIC TURN FOLDING (OPTION) |

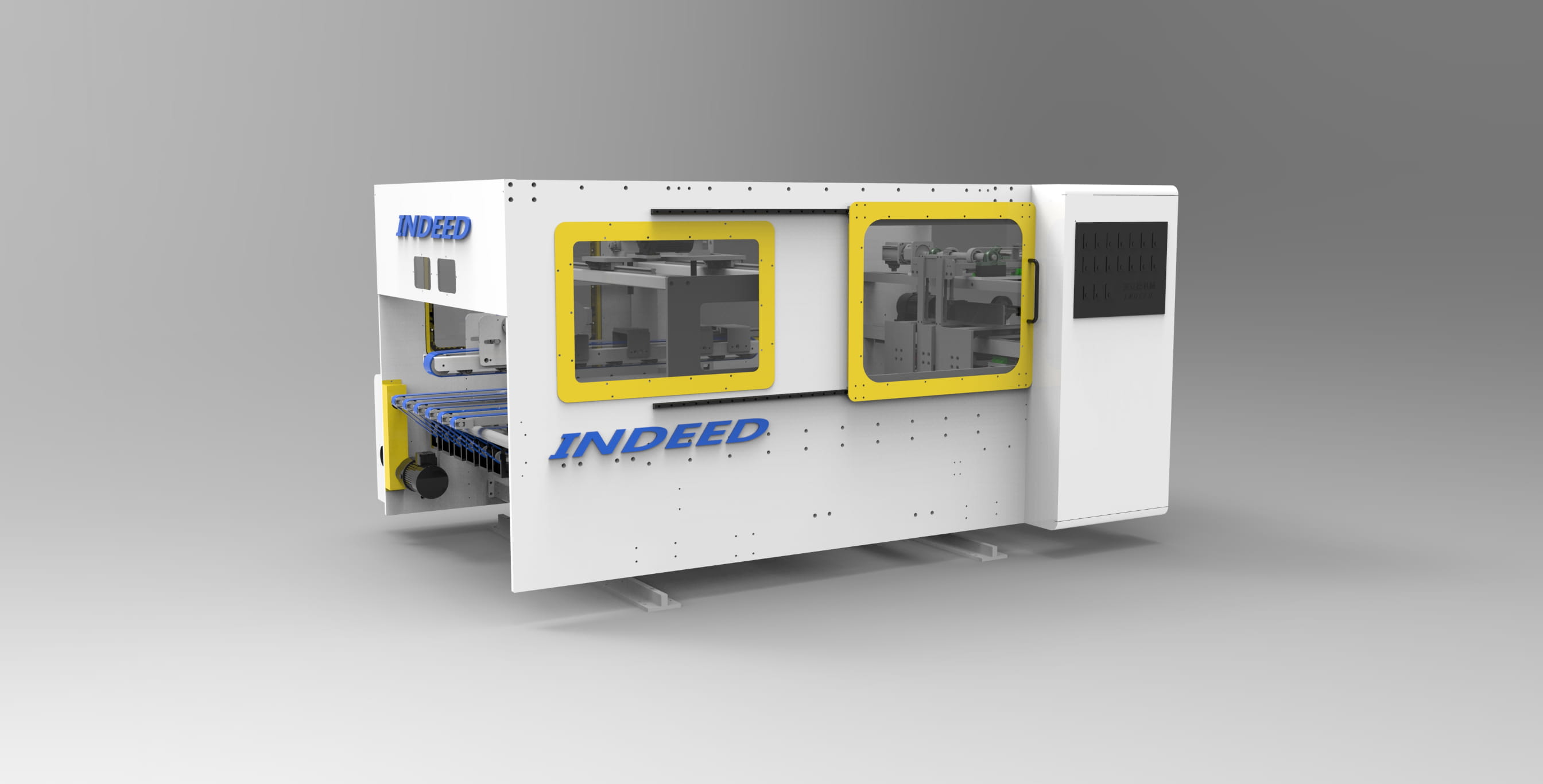

| COUNTER UNIT（BOTTOM COUNTING） |
