Full Servo Downward Folder Gluer IG Series_Folder Gluer & Stitcher Machine

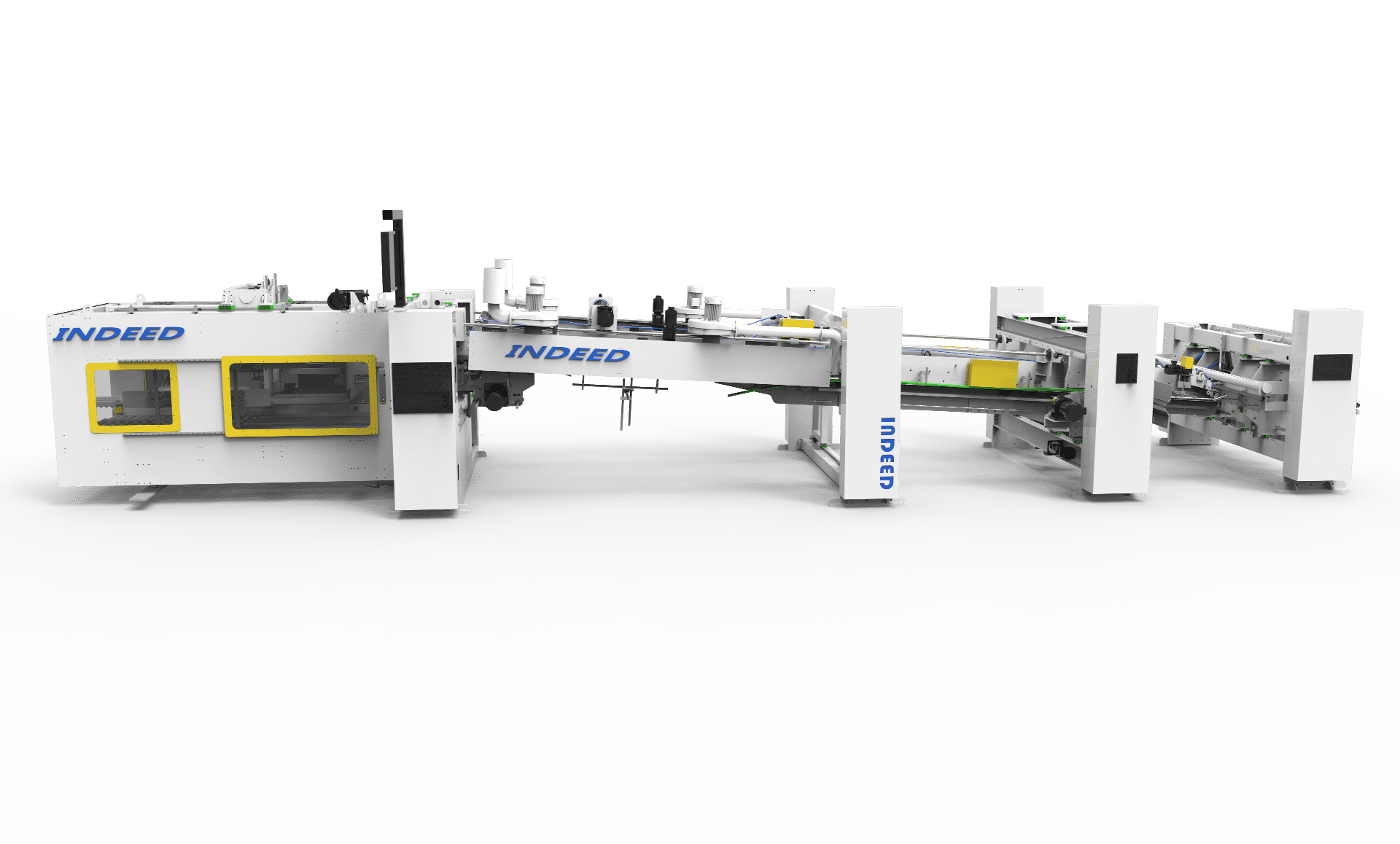

Kunshan Indeed’s high-speed downward folder gluer features a fully independent servo drive system, delivering ±1 mm forming accuracy and speeds up to 400 sheets per minute. It handles E- to AB-flute corrugated board and offers optional non-crush servo feeder and scrap cleaning units. A high-precision gluing system ensures consistent bonding without deformation or adhesive failure. With an HMI touchscreen for one-touch setup, it enables fast changeovers, reduces waste, and lowers labor costs—making it an ideal core solution for high-volume, high-quality production in food, logistics, and industrial packaging.

Parameters

Model		IG-618	IG-920	IG-924	IG-1224	IG-1227	IG-1228	IG-1628	IG-1632
Max Machine Speed（P/M）		400	400	300		250		220	220
L2	Max （mm）	650	700	750		800		800	1000
	Min （mm）	120	230	230		230		230	250
W1	Max （mm）	550	700	750		800		800	850
	Min （mm）	80	130	130		130		130	150
L2+W1	Max （mm）	900	1000	1200		1350	1400	1400	1600
	Min （mm）	220	360	360		360		360	400
D2	Max （mm）	600	900	900	1200	1200		1600
	Min （mm）	200	300	300		300		400
Glue Lap Width		35mm-40mm
Box Height		≥70mm
Suitable For Sheet		E-AB

Parameters

folder-gluer-indeed-floor-plan-01

Parameters

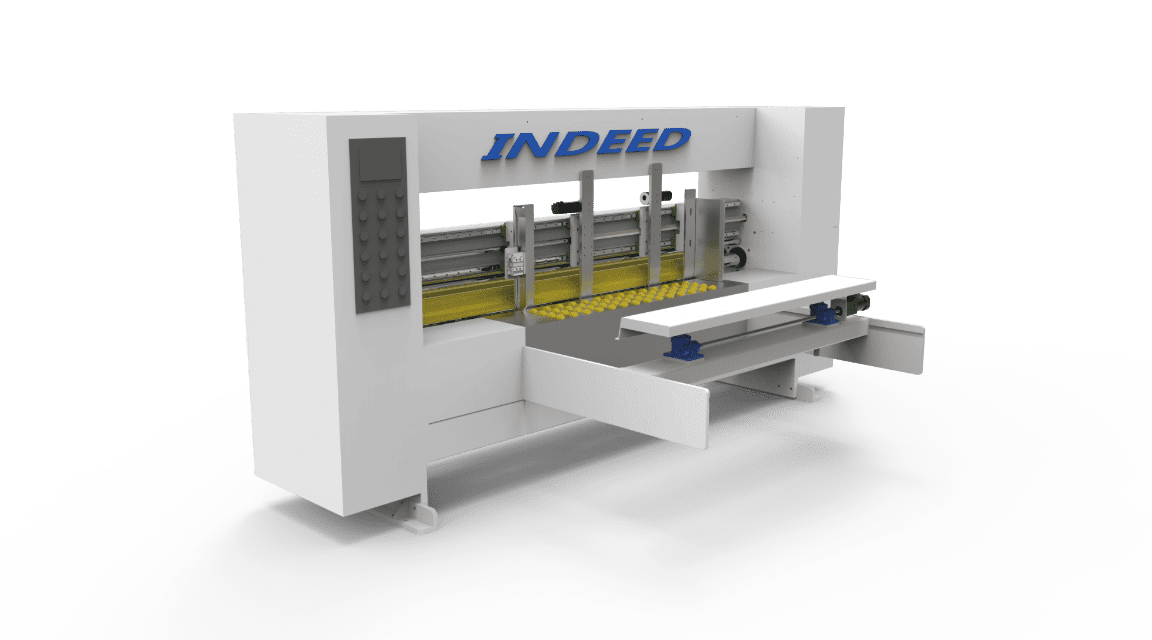

	SERVO CONTROL NON-CRUSH FEEDER (OPTION) Servo-driven for high precision. Non-crush design prevents cardboard deformation and ensures stable, high-quality feeding.

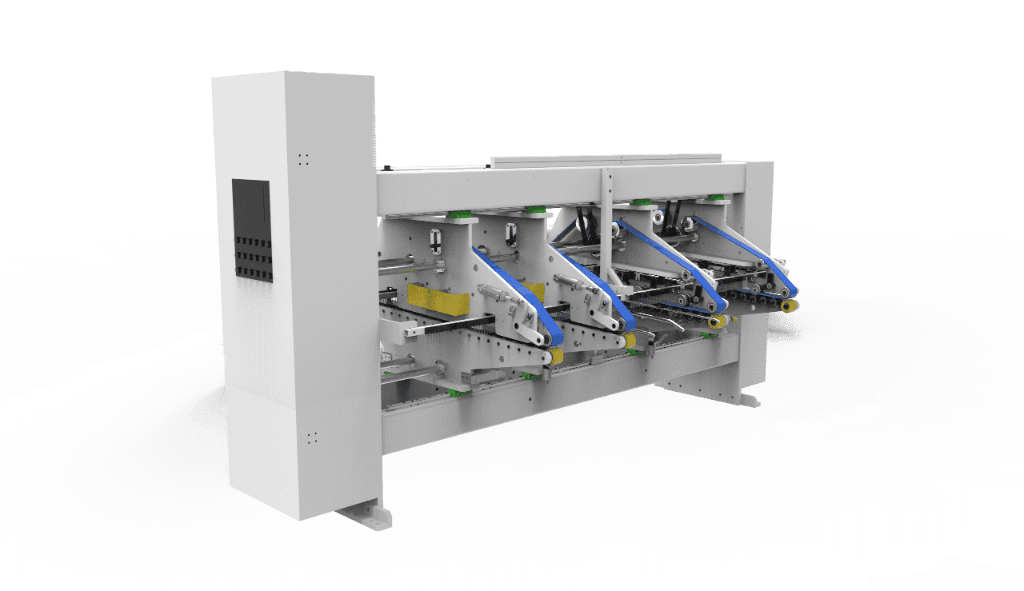

	SCRAPS CLEANING UNIT (OPTION) Four independent Belts by four servo motors，axis-free design， easy maintenance and low power consumption . With Three rows brush for chip removal, with higher chip removal rate and easy maintenance. The blower cooperates with the multi-channel universal joint pipe to blow paper scraps. Auto-adjust the four belts positions by folder gluer systm.

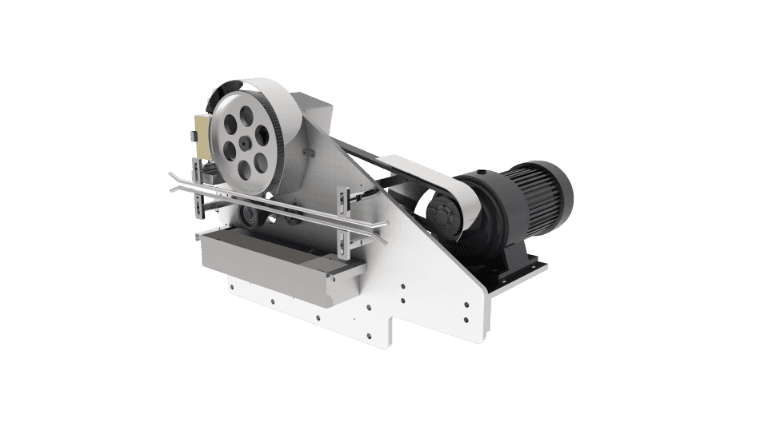

	ROLLING GLUE UNIT (OPTION VALCO OR HHS) The glue supply pump adopts peristaltic pump design, and the glue flow rate is more stable. Automatic glue return,when machine stop, rolling glue to keep the circle, reduce the probability of glue air drying and glue overflow problem. The glue roller adopts a cross-grain design, ensuring even glue application and preventing glue from being thrown off even at high speeds. The front unit of the rolling glue wheel adopts a dual-motor rotating brush to enhance the waste removal efficiency.

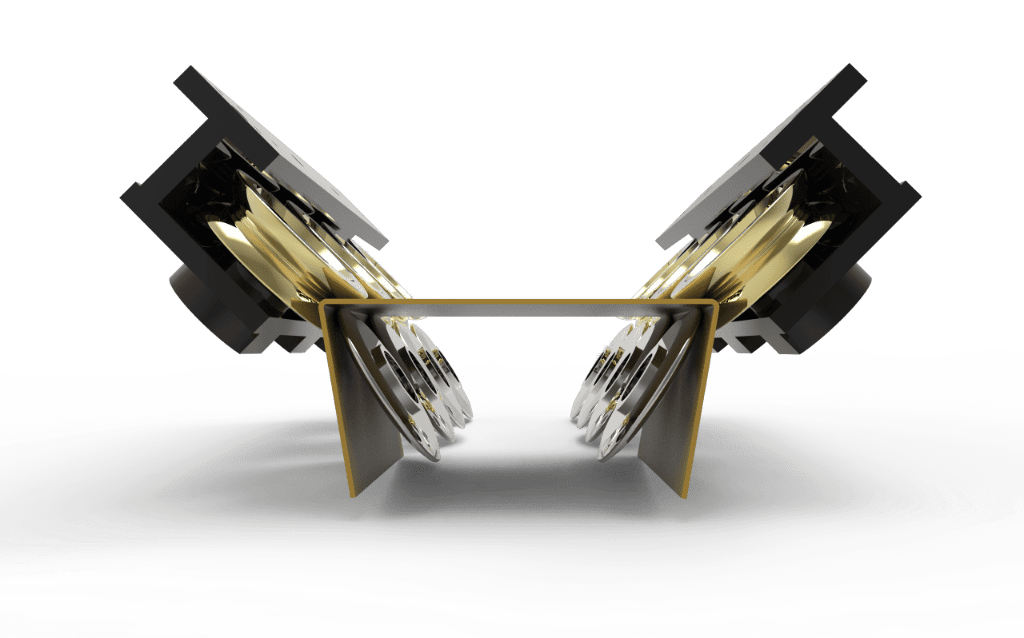

	CREASING AND FORMING UNIT The middle of the folding beam, there is 90°creasing wheels correct pressing unit to control the small folding gap. Lower independent differential belt controlled by independent gearmotor ,to control the speed difference separately and correct the tailing of the front and side labels caused by the upper resistance or incomplete pressing after the cardboard is closed. Forming wheel on both folding arm sides, Cone shaped arrangement,Control the big folding gap.

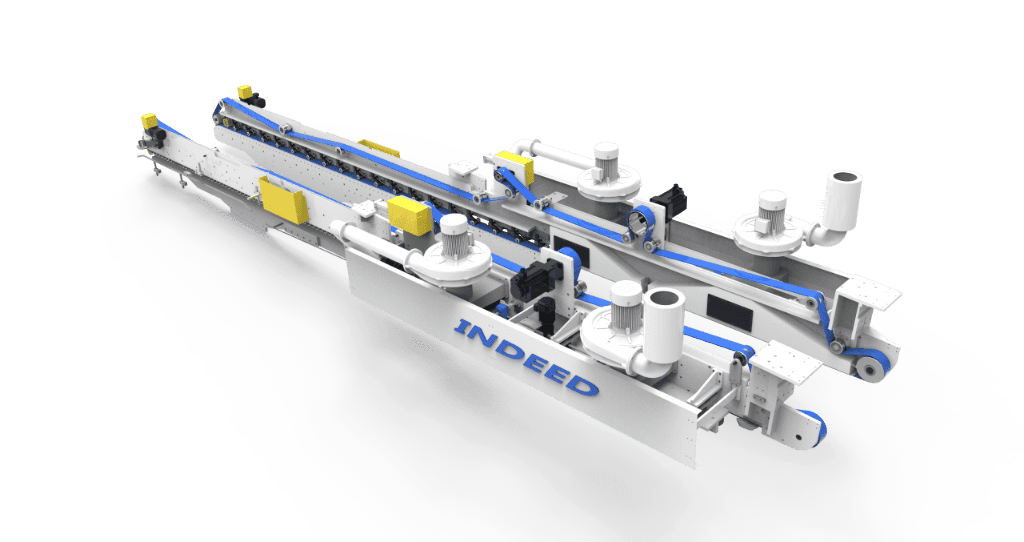

	FOLDING UNIT Sheet feed mouth’s roll supported by motor with encode ， ensure sheet stable go into folding arm unit. Two side Folding arm main belt running by servo motors， easy maintenance and low power consumption In the future, replacing the main belt will be very convenient, as it can be done by just two people in a few minutes，because axis-free design.

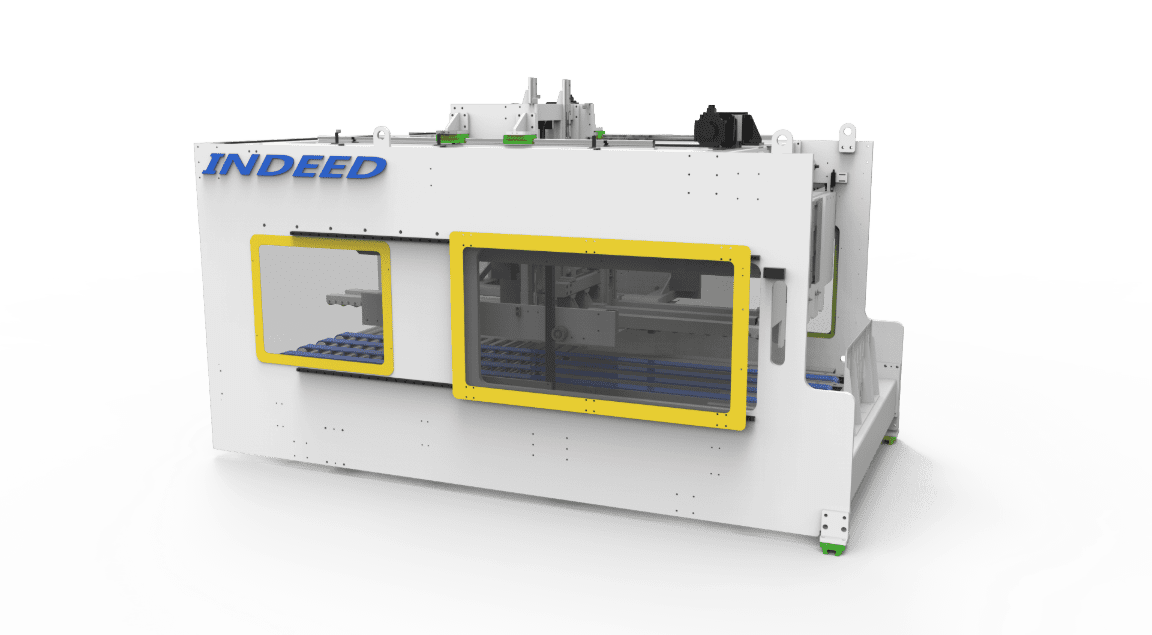

	COUNTER EJECTOR UNIT（TOP LOADING） The european type Top-loading type is simpler and lighter, with faster output circulation and lower power consumption. Timing belt drive，up-down，front-back moving, low noise and wear-resistant. Easy maintenance , greatly reduce the customer on-site maintenance personnel ability requirements.
