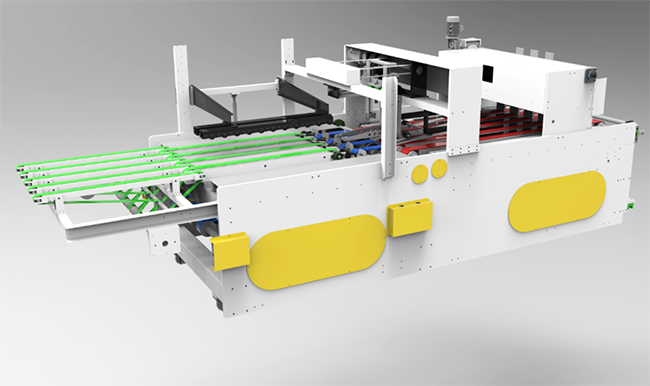

下出式高速糊箱机-下翻

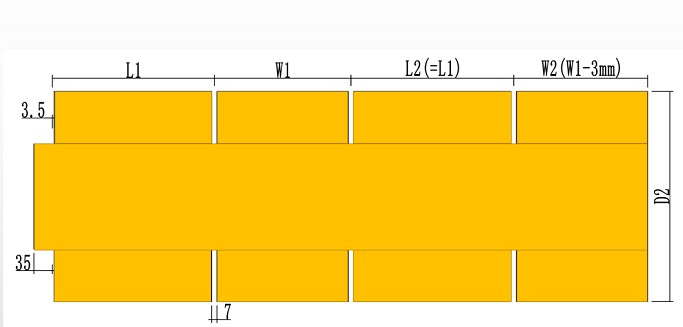

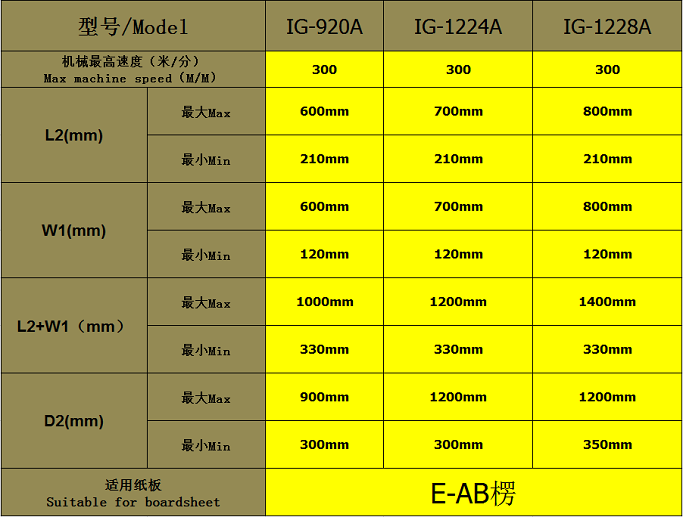

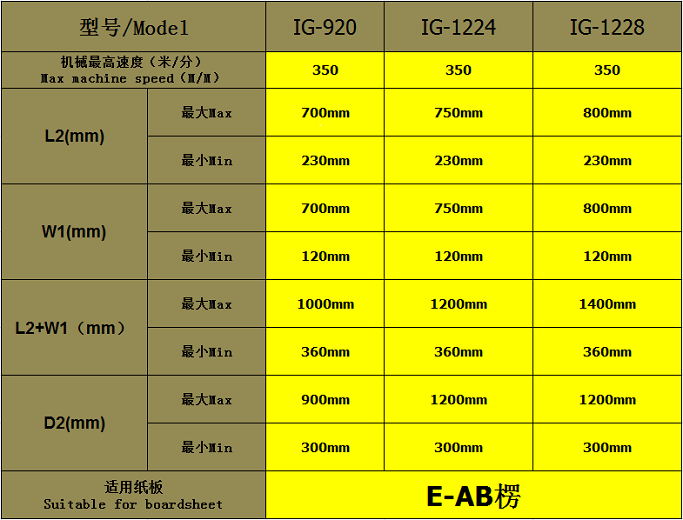

机器型号

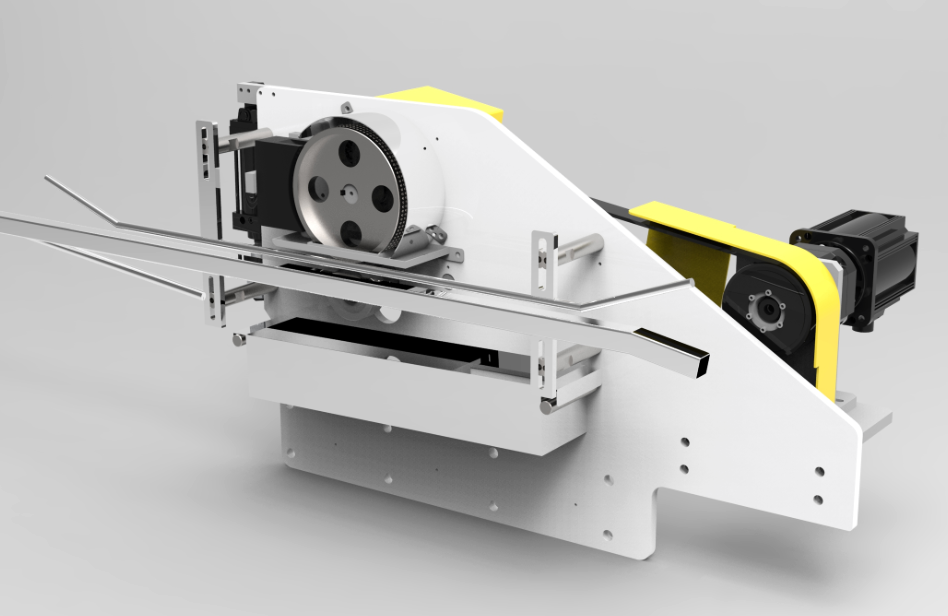

粘糊系统

滚胶

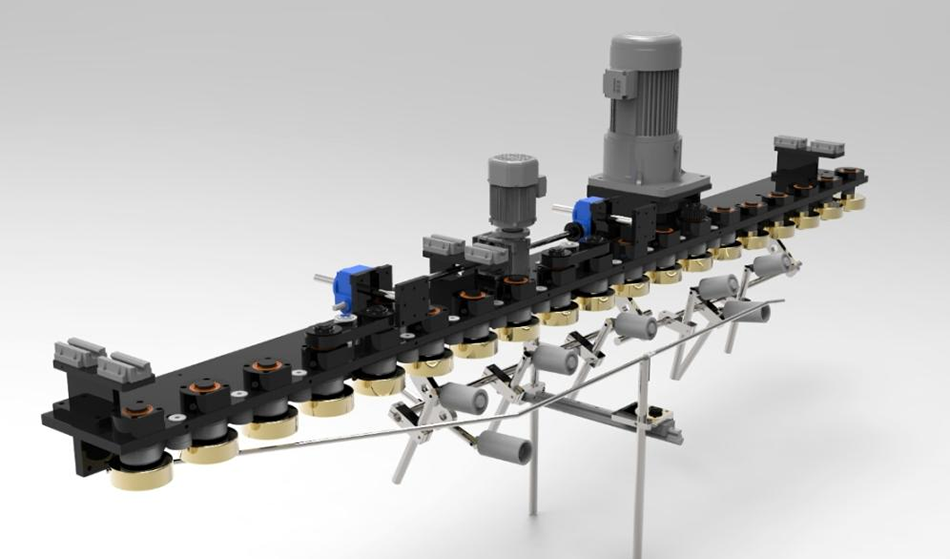

折纸部分

①刚性强，稳定性好的高精度折叠梁适合高速行驶。
RIGID STRENGTH ,STEADY FOLING BEAM , COMFORT FOR HIGH SPEED RUNNING
②两组侧压轮靠在折刀上，纸板通过时可以确保折叠线的精确
SIDE PRESSURE ROLL RELY ON THE FOLDING BLADE , MAKE CARTON FOLDING LINE ACCURATE
③折梁中部有90°整形轮，控制折弯角度
IN THE MIDDLE OF FOLDING BEAM,THERE’S CORRECT WHEEL TO CONTROL THE FOLDING ANGLE
④下皮带通过电机控制可单独控制速度差，用以矫正纸板剪刀差
LOWER BELT THROUGH MOTOR CONTROL THE SPEED DIFFERENCE,TO CORRECT THE SCISSORS DIFFERENTIAL.
⑤主皮带采用吸风带传送，防止纸板滑动歪扭。
MAIN BELT ADOPT SUCTION CONVEYOR,TO AVOID CARDBOARD

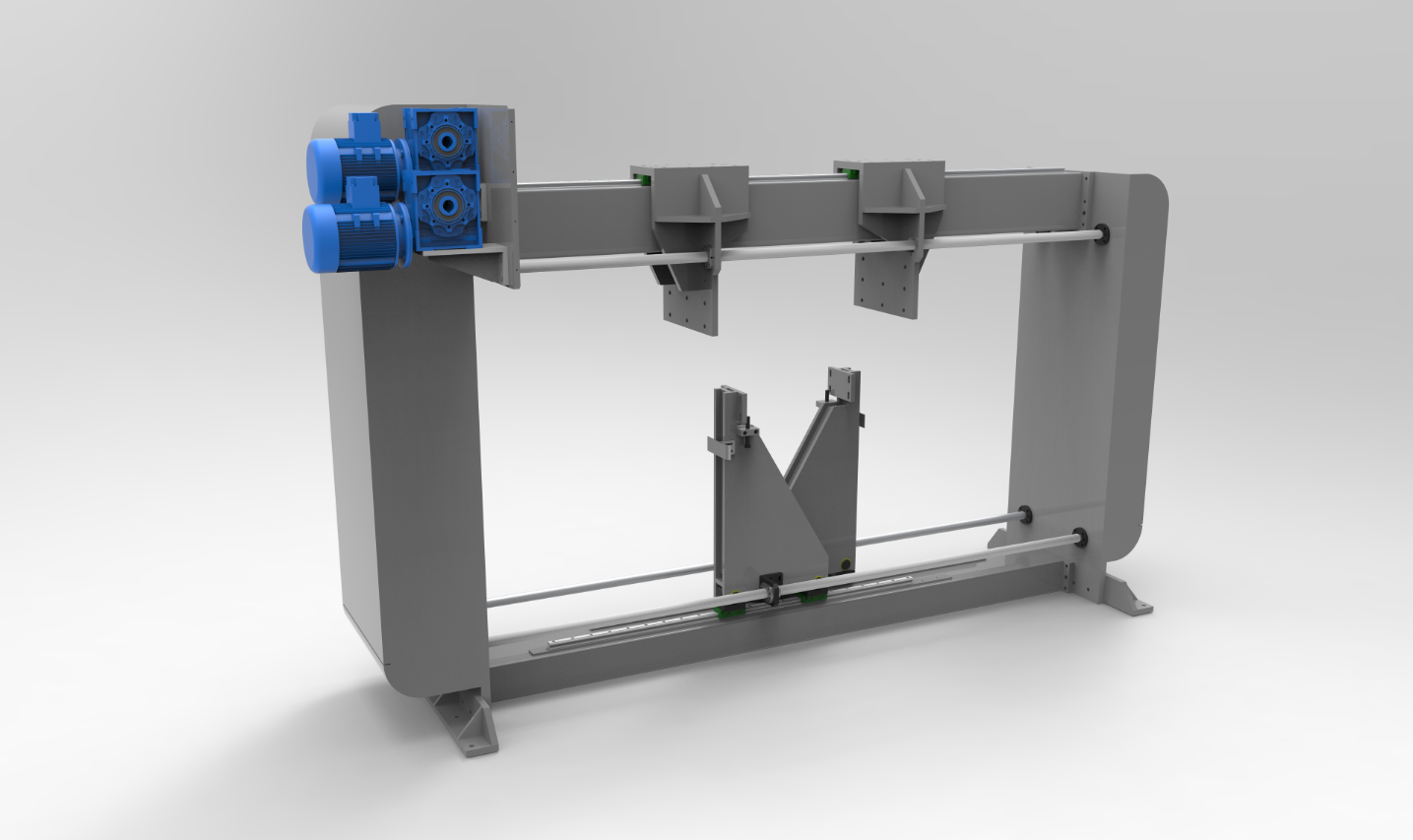

⑥中间龙门结构，更好的改善折梁在高速运行时的稳定性。
GANTRY STRUCTURE,TO ENSURE HIS STABLE WHEN HIGH SPEED RUNNING
⑦每侧折梁有多组成型轮，能更好的控制纸箱的成型。
EVERY BEAM SIDE HAS CORRECT WHEEL,TO ENSURE CARDBOARD SHAPING

运行部分

① 所有同步带传动结构简单，噪音低，运转平稳，振动小
ALL THE SYNCHRONIZATED BELT CONVEYOR STRUCTURE SIMPLE,LOW NOISE ,STEADY,LOW VIBRATION
② 活动部件采用丝杠和直线导轨
MOVING PART ADOPT LEAD SCREW AND LINEAR GUIDE RAIL

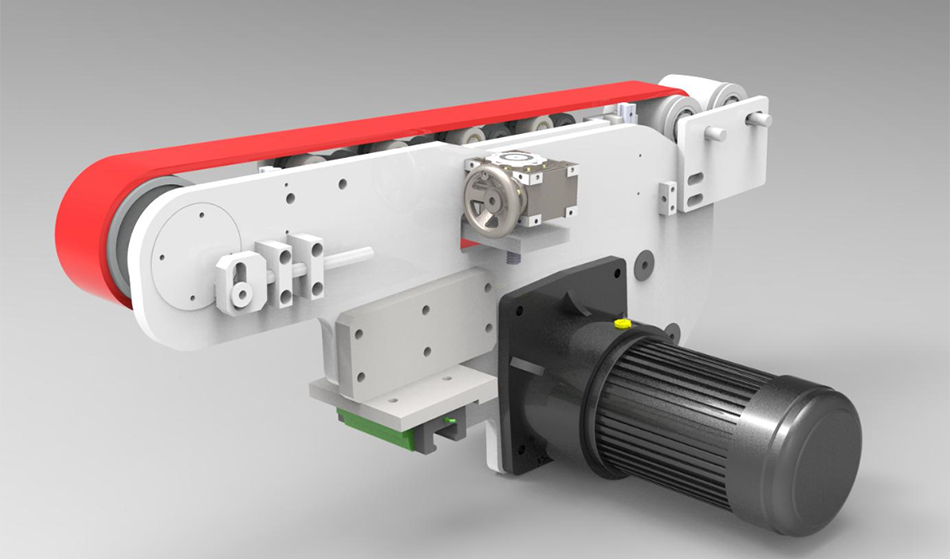

计数输出部

数输出部

①光电传感器精确计数，高速运行时完成精确计数
PHOTOSESOR COUNTING ACCURATE, HIGH SPEED RUNNING TO ACHIVE COUNTING ACCURATE
②高速精准控制堆叠数量
ACCURATE CONTROL STACKER QUANTITY
③按照堆叠设定张数由气动推板推出
CARTON OUT BY AIY CYLINDER BOARD
④可随时调整方向的强大风压防止纸箱弯翘
ADJUST WIND PRESSURE AT ANY TIME ,TO AVOID BOX CURVING
⑤底板电动移动调整（自动或手动）根据箱子的规格
BASEBOARD MOVMENT BY ELECTRICAL ,DEPAND ON BOX SIZE

注：产品的参数变动和机构改良，恕不另行通知。
